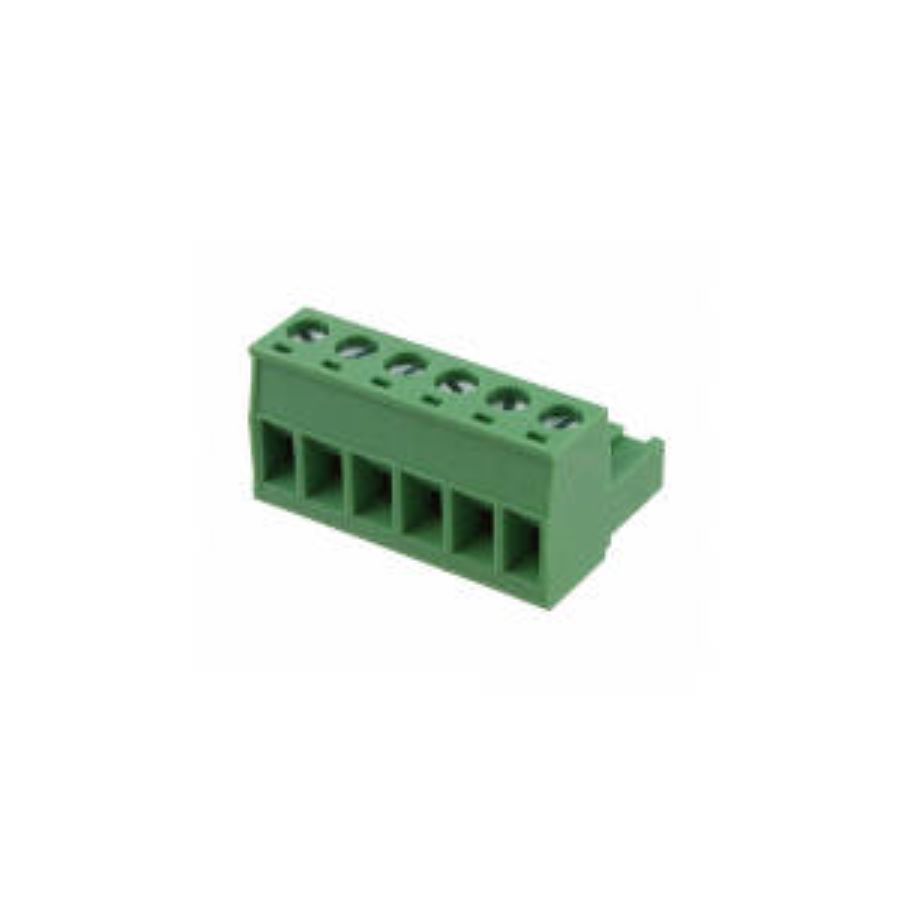

OSTTJ065153
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTTJ065153
Datasheet:
Description:
Terminal Blocks Through Hole 6 5.08 mm 20 A 300 V 24 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 6 |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Pitch | 5.08 mm |
| Current | 20 A |
| Current Rating | 20 A |
| Color | Green |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 12 AWG |
| Connection Method | Plug |
| Wire Gauge Range | 24 AWG to 12 AWG |
Stock: 4892
Distributors
pcbx
pcbxUnit Price$2.34009
Ext.Price$2.34009
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.34009 | $2.34009 |
| 10 | $1.66499 | $16.64990 |
| 25 | $1.45586 | $36.39650 |
| 50 | $1.32472 | $66.23600 |
| 100 | $1.21566 | $121.56600 |
| 300 | $1.12222 | $336.66600 |
| 500 | $1.03596 | $517.98000 |
| 1000 | $0.98367 | $983.67000 |
| 3000 | $0.94212 | $2826.36000 |
| 5000 | $0.90233 | $4511.65000 |
